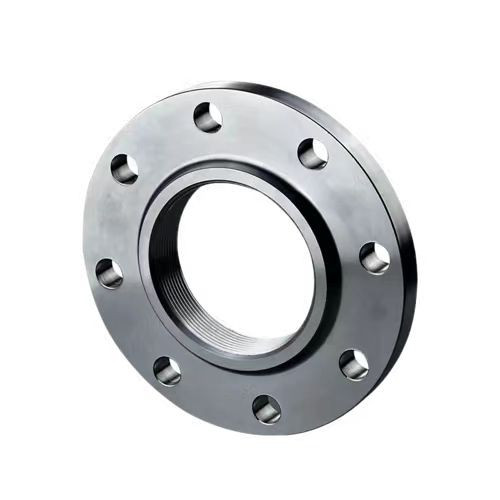

Stainless Steel Threaded Flanges

Threaded flanges are widely demanded as pipe flanges used in different industrial applications. They are the special type of pipe flanges which can be attached to the pipe without welding. Threaded flanges are threaded in the bore which match an external thread on the pipe.

These threads are tapered in order to create a seal between the threaded flange and the pipe as the tapers approach the same diameter. Sometimes a seal weld is also used together with the threaded connection. They are available in various sizes and materials.

Material :

               ● Stainless Steel , Carbon Steel , Alloy steel

Size Range :

               ● DN10-DN3600

Standard :

               ● ANSI : Class 150 Flanges-Class 2500 Flanges

               ● DIN : 6Bar , 10Bar ,16Bar , 25Bar , 40Bar

               ● JIS : 5K Flanges , 20K Flanges

               ● UNI : 6Bar , 10Bar ,16Bar , 25Bar , 40Bar

               ● EN : 6Bar , 10Bar ,16Bar , 25Bar , 40Bar

               ● GB : 6Bar , 10Bar ,16Bar , 25Bar , 40Bar

               ● SABS : T1000/3 T1600/3 T2500/3 T4000/3

Connection :

               ● Welding ,Threaded

Technical :

               ● Forged, Casting

Package :

               ● Standard export packaging ; As Customers' Requirements

Type:

               ● Welding neck Flange

               ● Slip on

               ● Socket welding

               ● Lap joint flange

               ● Threaded flange

               ● Blind flange
