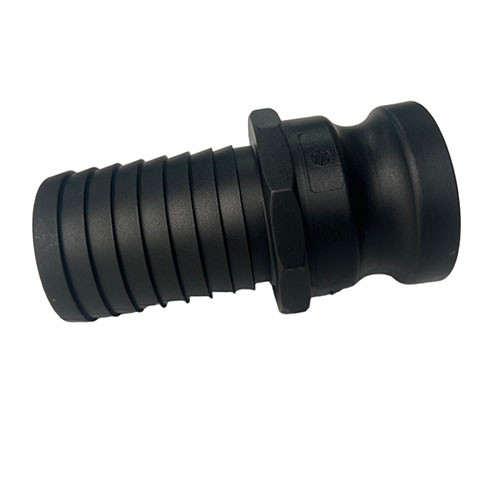

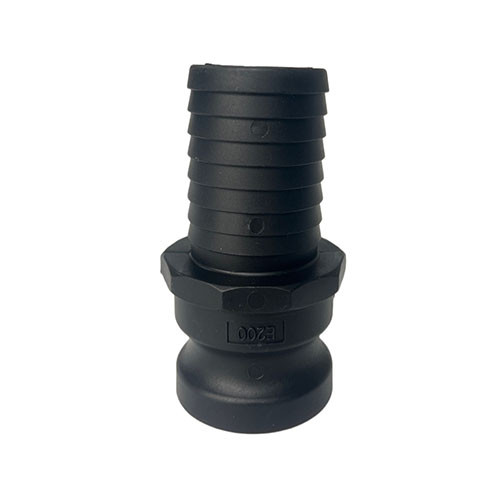

  • Polypropylene Camlock Fittings Multi Hose Tail Type E
  • Polypropylene Camlock Fittings Multi Hose Tail Type E
Polypropylene Camlock Fittings Multi Hose Tail Type EPolypropylene Camlock Fittings Multi Hose Tail Type E

Polypropylene Camlock Fittings Multi Hose Tail Type E

  • Product Item : Type E Male adaptor X Hose Shank
  • Category: Polypropylene Camlock Fittings
  • Items No.: Multi Hose Tail Type E
  • Material : Polypropylene
  • Size: 1/2" to 4"
  • Methods: Injection
  • Used with Couplers Type B, Type C, Type D, Type DC
  • INQUIRY   EMAIL
Product Description:


Camlock Fittings is a reliable quick connect coupling for use on hose,pipe,tubing and tanks conveying a wide variety of liquids,
dry bulk materiales and vapours inculding cooling water,fuels, chemical, cosmetics, food products, adhesives,dyes,pharmaceuticals

pallets and much more.


Material :

                ● Polypropylene

Size Range :

                ● 1/2" , 3/4" , 1" , 1-1/4",  1-1/2",  2",  2-1/2",  3",  4"

Thread :

                ● NPT,BSP ( female thread parallel BSPP , male thread tapered BSPT )

Handle :

                ● Stainless Steel

Methods:

                ● Injection

Working Pressure Ranging :

                ● 1/2" to 2-1/2"   100 psi

                ● 3" & 4"  50 psi

Seal :

                ● Buna seals are fitted as standard.

                ● Other materials on request ( EPDM , VITON , PTFE , ect .)


Available Type : A, B , C , D , E , F , DC , DP

                ● Part "A"  Female Threaded Male Adaptor
            Part "B"  Male Threaded Female Coupler
            Part "C"  Female Coupler c/w Hose Tail
            Part "D"  Female Threaded Female Coupler
            Part "E"  Male Adaptor c/w Hose Tail
            Part "F"  Male Threaded Male Adaptor
            Part "DC" Female Coupler Dust Cap

                ● Part "DP" Male Adaptor Dust Plug
