DIN2828 Stainless Steel Camlock Fittings Type A

DIN2828 Stainless Steel Camlock Fittings Type A

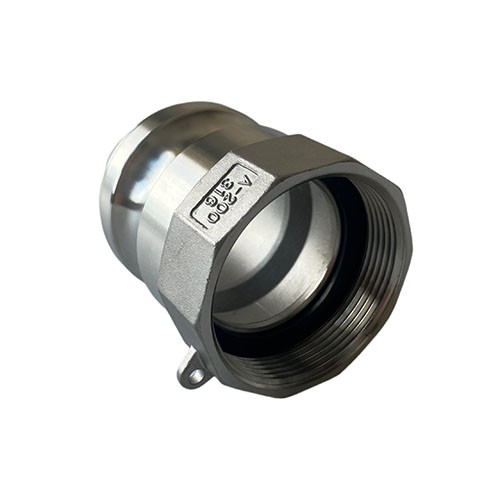

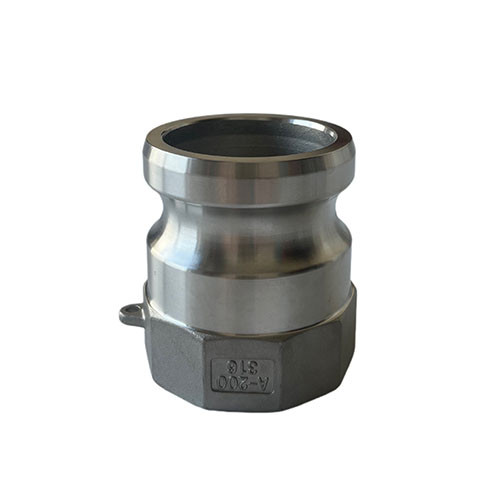

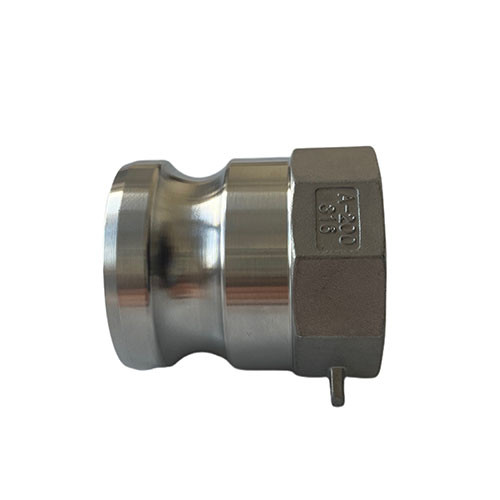

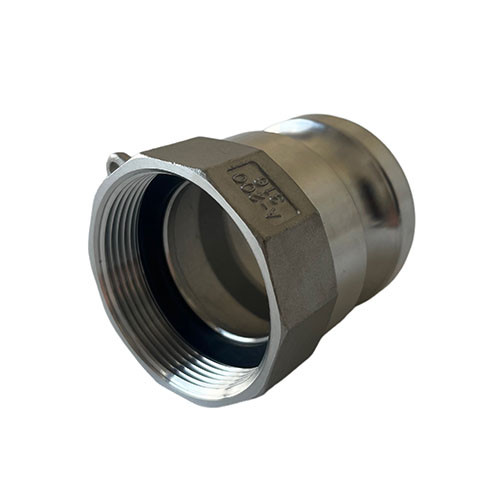

Product Item : Camlock male adapter with female thread
Category： DIN2828 Camlock Fittings
Items No. : Type A
Size : 3/4" to 4"
Standard: DIN EN 14420-7 (DIN 2828)
with thread gasket
Methods:Investment casting, Gravity Casting
Material : Stainless Steel & Aluminum
INQUIRY EMAIL

Product Description:

Camlock Fittings is a reliable quick connect coupling for use on hose,pipe,tubing and tanks conveying a wide variety of liquids,
dry bulk materiales and vapours inculding cooling water,fuels, chemical, cosmetics, food products, adhesives,dyes,pharmaceuticals

pallets and much more.

Material :

● SS316 ( CF8M ) / SS304 ( CF8 ) , Aluminum

Size Range :

● 3/4" , 1" , 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Standard :

● DIN EN 14420-7 (DIN 2828)

Handle :

● SS304 , Stainless Steel

Methods:

● Investment casting , Gravity Casting

Seal : with thread gasket

● Buna seals are fitted as standard.

● Other materials on request ( EPDM , VITON , PTFE , ect .)

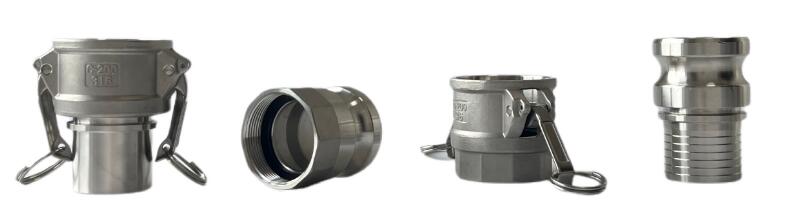

Available Type : A, C , D , E

                ● Part "A" Female Threaded Male Adaptor
            ● Part "C" Female Coupler c/w Hose Tail
            ● Part "D" Female Threaded Female Coupler
            ● Part "E" Male Adaptor c/w Hose Tail
