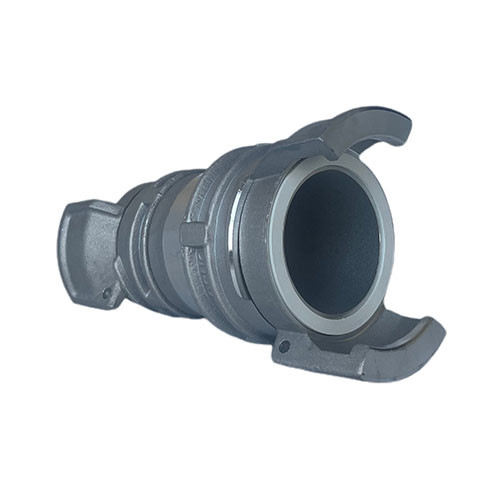

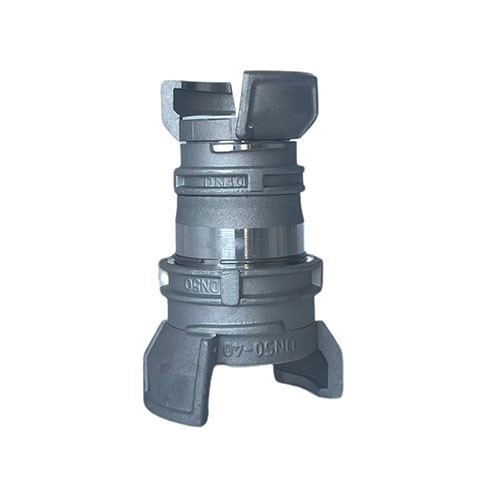

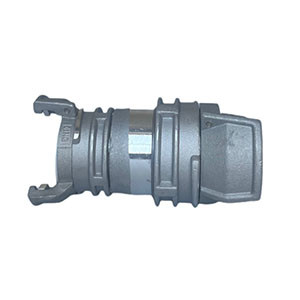

Aluminum Guillemin Couplings Reducer with Latch

Guillemin Couplings were first designed in France and are compliant with EN 14420-8 / NF E 29-572. Simple and easy connection is the key to their popularity. Two identical halves with two lugs are closed just by putting them together with the seals facing each other and by turning the locking rings so that the lugs are securely engaged.

Guillemin couplings are used for delivery and suction-delivery applications for water, fluids, hydrocarbons, (including bituminous substances), chemicals (stainless steel version) and dry loose materials (powders, granules). Not suitable for steam and other gases. Used in industrial installations, irrigation, loading and unloading systems, as the equipment of road and rail tankers.

Material : ● Aluminum , Stainless Steel, PP

Size Range : ● 1-1/2" ( DN40) , 2" ( DN50) , 2-1/2" (DN65) ,3" ( DN80) , 4" ( DN100 )

                        ● Other specail sizes could be available on request .

Type : ● Male , Female , Cap ,Hose Tail

Thread : ● BSP
